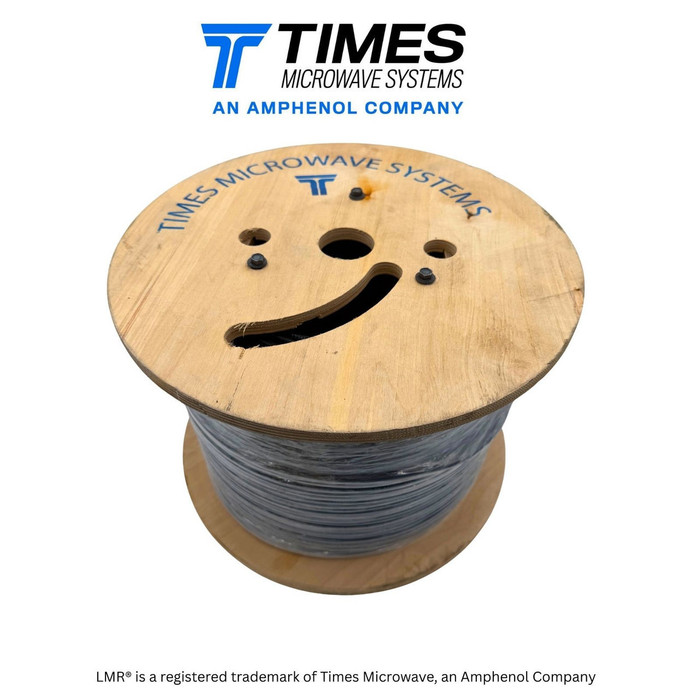

BULK LMR®-600-UF Ultraflex (By the Foot or 500-ft Spool)

The Times Microwave LMR®-600-UF (UltraFlex) coax available at rigcables.com is a premium 50-ohm ultra-low-loss coaxial cable manufactured by Times Microwave Systems. It delivers exceptional performance for demanding RF applications where both low attenuation over longer runs and high flexibility are required.

This high-quality coax features a foam polyethylene dielectric, an aluminum tape outer conductor with tinned copper braid for superior shielding (>90 dB), and a durable, flexible black Thermoplastic Elastomer (TPE) jacket. It is ideal for both indoor and outdoor use, with excellent UV/weather resistance and a wide operating temperature range. It is available for purchase by the foot for custom lengths or in full spools for larger projects, providing flexibility to match exact installation needs without excess waste.

Key Construction Differences
- Stranded bare copper center conductor (instead of solid) and a highly flexible TPE jacket.
- This design makes LMR-600-UF significantly more flexible and better suited for repeated flexing or tight routing compared to standard LMR-600.

Overall diameter remains approximately 0.590 inches (same as standard LMR-600), with a weight of about 0.165 lb/ft.

Compared to traditional RG-8U, RG-213, LMR-400, and even standard LMR-600, the LMR-600-UF provides significantly lower signal attenuation than LMR-400 (roughly 35-40% lower loss at many frequencies) while offering much greater flexibility than the standard LMR-600 version. It maintains the same excellent low-loss characteristics and high power handling of LMR-600 but with improved bendability for easier installation in confined spaces or applications involving movement.

Typical Applications
- Ham radio (amateur) antenna feeder runs, especially where routing is challenging or periodic flexing occurs.
- Base station setups.
- Wireless communications.
- GPS systems.
- Jumper assemblies.
- Any RF installation requiring minimal signal loss combined with high flexibility.

It serves as a popular upgrade over older RG-style cables or standard LMR-400/600 when both low loss and easy routing/repeated bending are essential.

Key performance highlights (approximate values from manufacturer data):

- Velocity of propagation: 87%
- Attenuation at 450 MHz: ~2.1 dB/100 ft
- Attenuation at 900 MHz: ~3.0 dB/100 ft
- Peak power handling: up to 40 kW
- Shielding effectiveness: >90 dB
- Minimum bend radius: 1.5 inches (installation) / 6.0 inches (repeated)
- Bending moment: 1.75 ft-lb (noticeably lower/stiffer than standard LMR-600 in some metrics, but far more flexible overall due to stranded conductor and TPE jacket)

Note: While LMR-600-UF offers excellent flexibility for its size, its larger diameter still requires more space than LMR-400 variants. For the absolute tightest bends or highest number of flex cycles, always respect the published bend radius. It is an outstanding choice when you need LMR-600-level low loss performance without the stiffness of the standard version.

This UltraFlex variant is particularly well-suited for portable setups, temporary installations, or any environment where the cable may need to be moved or repositioned periodically.

PLEASE NOTE: Shipping will be calculated manually for this coax.  The actual shipping charges will be added to your invoice.  This is due to the weight and size of this item.
